Proper Alignment of UIImage and UILabel when using UITableViewCellStyleSubtitle

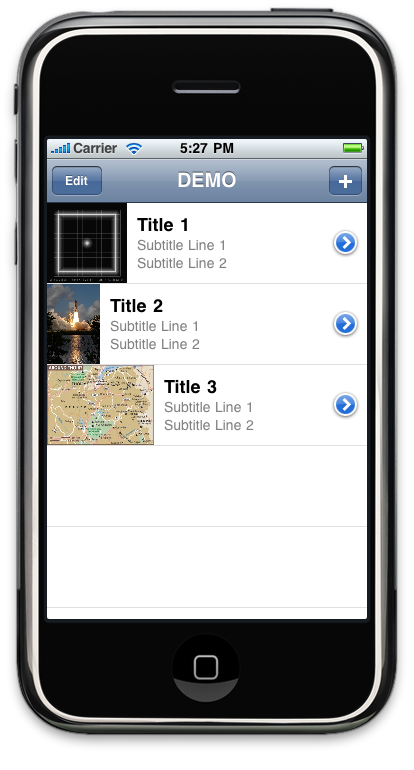

I am working on an iPhone App Project for a client and I decided to use the UITableViewCellStyleSubtitle for one of my views. It was easy to setup and it had all the details I needed. The only customization I did was change the detailTextLabel.numberOfLines to 2. So I loaded up my content and to my dismay, the cell is not intelligent enough to line up the labels horizontally across all cells. This really, really bothers me.
Before I set out to create my own class and draw my own labels and images, I thought I would just subclass UITableViewCell and try overriding the layouts for what I needed.
| //////////////////////////// | |
| // .h file | |
| #import <UIKit/UIKit.h> | |
| @interface DemoTableViewCell : UITableViewCell { | |
| } | |
| @end | |
| //////////////////////////// | |
| // .m file | |
| #import "DemoTableViewCell.h" | |
| #define MARGIN 10 | |
| @implementation DemoTableViewCell | |
| - (void) layoutSubviews { | |
| [super layoutSubviews]; | |
| CGRect cvf = self.contentView.frame; | |
| self.imageView.frame = CGRectMake(0.0, | |
| 0.0, | |
| cvf.size.height-1, | |
| cvf.size.height-1); | |
| self.imageView.contentMode = UIViewContentModeScaleAspectFit; | |
| CGRect frame = CGRectMake(cvf.size.height + MARGIN, | |
| self.textLabel.frame.origin.y, | |
| cvf.size.width - cvf.size.height - 2*MARGIN, | |
| self.textLabel.frame.size.height); | |
| self.textLabel.frame = frame; | |
| frame = CGRectMake(cvf.size.height + MARGIN, | |
| self.detailTextLabel.frame.origin.y, | |
| cvf.size.width - cvf.size.height - 2*MARGIN, | |
| self.detailTextLabel.frame.size.height); | |
| self.detailTextLabel.frame = frame; | |
| } | |
| @end |

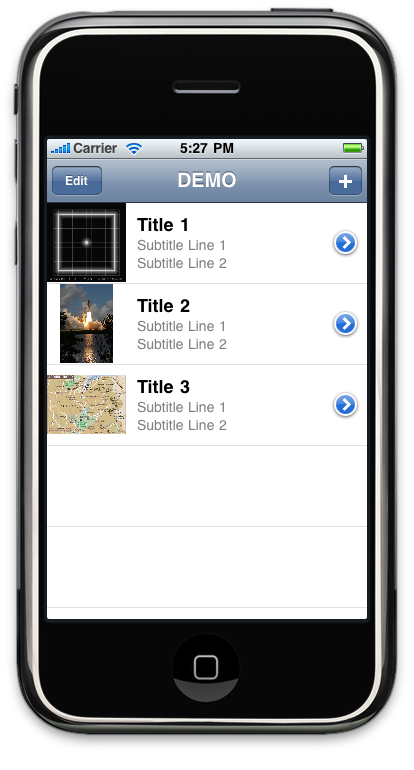

Turns out that was all I needed. After using this subclass instead of a UITableViewCell, I now get my image filling the square (if possible) and the Text Labels all lined up vertically.
This code makes 2 assumptions:
1) You want a square imageView that has a width equal to the height of the cell - 1 (for the separator)
2) You want the image to be aspect fit
Enjoy!
